Slicing Puzzle¶

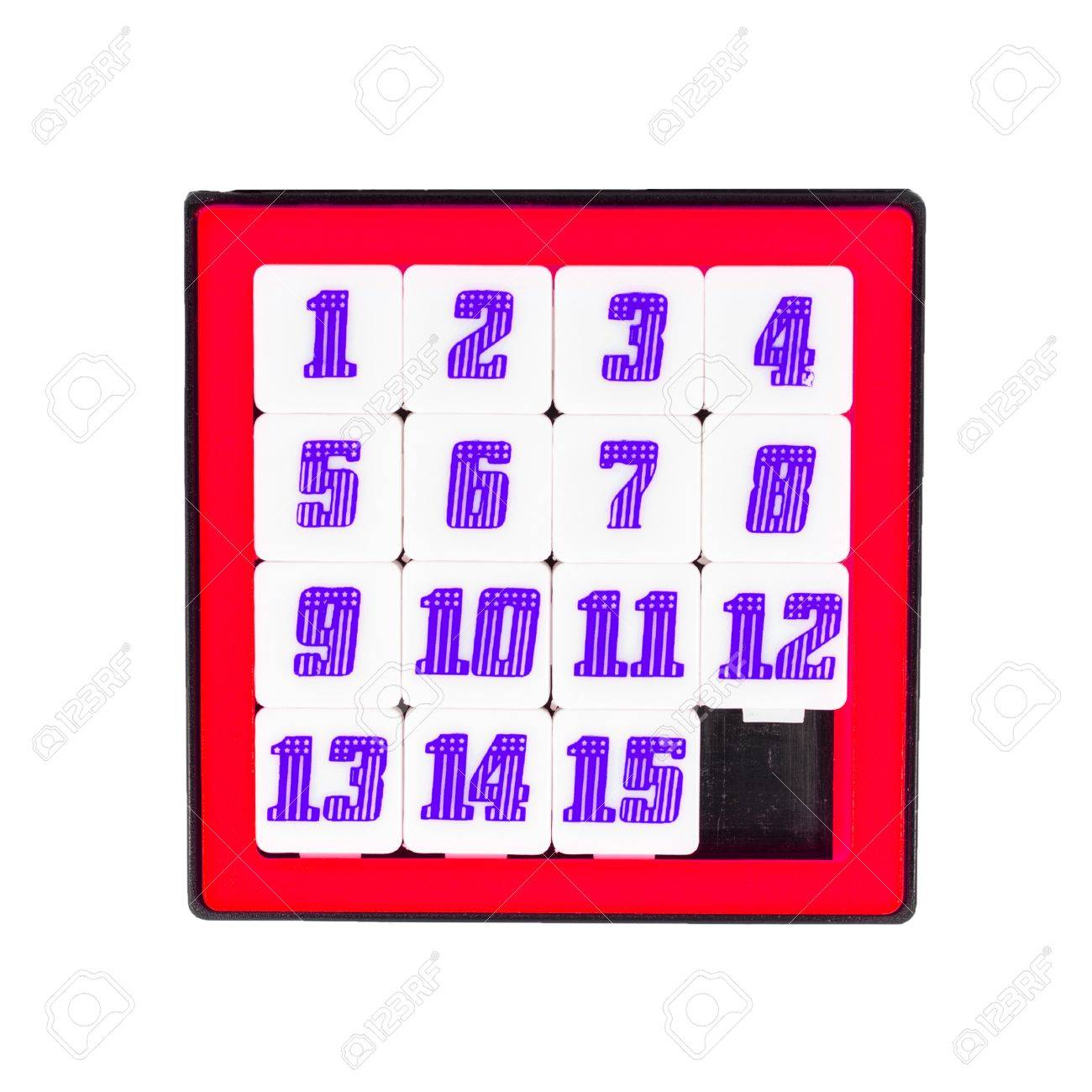

This game is the classical Slicing puzzle. In a board of N x N squares, where every square has a number between [0, N-2], there is one of the squares that is empty (-1). The objective is to sort all the squares in the board in the lowest number of movements. A movement is moving one of the squares next to the empty square to the empty square, becoming its position as the new empty square.

Goal¶

Sort the board in the lowest number of movements. A board is considered solved when all the squares are sorted in ascending order, sorting first rows and then columns. In the solved board the empty square is in the bottom right corner.

Score¶

The number of movements needed to solve the board.

Import¶

import IArena.games.SlicingPuzzle.SlicingPuzzlePosition as SlicingPuzzlePosition
import IArena.games.SlicingPuzzle.SlicingPuzzleMovement as SlicingPuzzleMovement
import IArena.games.SlicingPuzzle.SlicingPuzzleRules as SlicingPuzzleRules

Movement¶

A movement is represented by an enumeration with 4 values:

Up - 0 - Move the square below the empty one to the empty square. - Move the empty square down.
Down - 1 - Move the square above the empty one to the empty square. - Move the empty square up.
Left - 2 - Move the square to the right of the empty one to the empty square. - Move the empty square to the right.
Right - 3 - Move the square to the left of the empty one to the empty square. - Move the empty square to the left.

# Move Up
movement = SlicingPuzzleMovement.Values.Up

# Move Left
movement = SlicingPuzzleMovement.Values.Left

Position¶

The position is represented by a List[List[int]]. The size of the board is n x n. The value of each square is between [0, n-2]. The empty square is represented by -1.

It counts with the following methods:

empty_space - Retrieve the position of the empty square. - Returns a tuple (row, column).
len - Get the size of the board
cost - Get the number of movements made so far

# position : SlicingPuzzlePosition
position.n                  # Size of the board: n x n
len(position.positions)     # Size of the board: n x n

x, y = positions.empty_space()  # Row and Col of the empty square

position.squares            # The board
position.squares[0][0]      # The number in the upper left corner
position.positions[-1][-1]  # The number in the bottom right corner

position.cost()             # Number of movements so far

Rules¶

This games has every methods of IRules.

Constructor¶

Can receive the initial position of the numbers, or the size of the board (n) and it will generate a random position.

# Random initial board of 3x3
rules = SlicingPuzzleRulesRules()

# Random initial board of 4x4 reproducible
rules = SlicingPuzzleRulesRules(n=4, seed=0)

# Initial board of 3x3 predefined
rules = SlicingPuzzleRulesRules(initial_position=[[1, 2, 3], [4, 5, 6], [-1, 7, 8]])
